Vi utför kontinuerligt många olika projekt

Arlanda tankfarm

3 off model no. HF-3242/12 Velcon/Warner microfilter according

to API/IP Specification 1590, 2nd Edition April 2002

Max. flow rate: 408 m³/h Jet Fuel

Design pressure: 16 bar

Design temperature: +50 °C

Micron rating: 1 µ (micron)

Material: Carbon steel ASME

Equipped with: 36 off FO-614PLF-1P Velcon microfilter elements

3 off model no. HV-3856 Velcon/Warner Lewis filter water separator

according to API/IP specification 1581, 5th Edition July 2002

Max. flow rate: 386 m³/h Jet Fuel

Design pressure: 16 bar

Design temperature: +50 °C

Material: Carbon steel ASME

Equipped with:

1st stage: 12 off I-656C5TB Velcon coalescer elements

2nd stage: 4 off SO-643C Velcon separator elements

6 off model no. HV-3456 Velcon/Warner Lewis filterwaterseparator

according to API/IP specification 1581, 5th Edition July 2002

Max. flow rate: 321 m³/h Jet Fuel

Design pressure: 16 bar

Design temperature: +50 °C

Material: Carbon steel ASME

Equipped with:

1st stage: 10 off I-656C5TB Velcon coalescer elements

2nd stage: 3 off SO-643CM Velcon separator elements



Gävle tankfarm

3 off model no. HF-2844/10-TT Warner Lewis microfilter according to API/IP Specification 1590, 2nd Edition April 2002 and AD2000-Regelwerk Edition February 2005

   Max. flow rate: 388 m³/h jet fuel

   Design pressure: 16 bar

   Design temperature: -20 / +50 °C

   Micron rating: 3 µ (Micron) nominal

   Material: Carbon steel

   Equipped with: 10 off FO-644A3 Velcon microfilter elements

3 off model no. HV-3856-TT Warner Lewis filter separator according to API/IP Specification 1581, 5th Edition July 2002 and AD2000-Regelwerk Edition February 2005

   Max. flow rate: 378 m³/h jet fuel

   Design pressure: 16 bar

   Design temperature: -20 / +50 °C

   Material: Carbon steel

   Equipped with:

     1st stage: 12 off I-656C5TB Velcon coalescer elements

      2nd stage: 5 off SO-648V Velcon separator elements

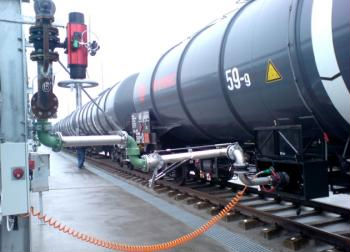

FUEL TRAIN

Product is transported by train from shipping docks to loading station in Bristad and from there its underground pipline.
